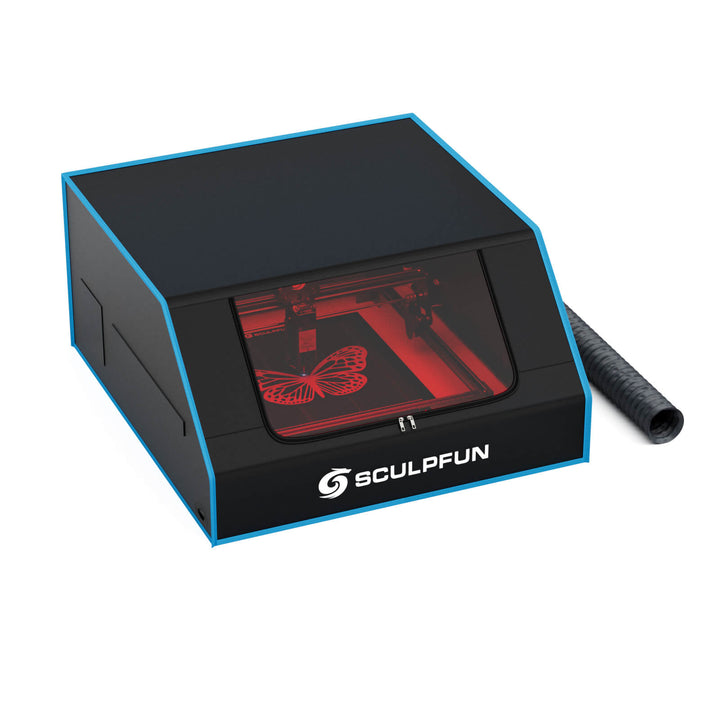

SCULPFUN B1 Enclosure For Laser Engraver Smokeproof Fireproof with Fan
-
Fast Shipping
Local US & EU Warehouse for most of products -
30 Days Return
Simply return it within 30 days -
1 Year Free Warranty
Provide free replacement within 1 year -
2% rebate on orders
Get 2% of your order back
Frequently Bought Together
Main Features:
1. Two Exhaust Vents: There are two exhaust vents and cable ports on both left and right sides of the enclosure. The cable ports make the cables of the laser engraving machine or air assist easier to pass through. And you can choose to install the fan and exhaust pipe on the left or right side according to the position of the window or actual usage, while the other side can be taped with the Velcro to keep it sealed.
2. Smoke and Odor Isolation: The Sculpfun laser enclosure features an enclosed design, which can effectively keep away the smoke, odors and noise generated during the laser engraving and cutting process as well as protect your safety and health, providing a more comfortable indoor laser engraving environment. Moreover, it can also be used as a dustproof cover to keep your machine free of dust. Simply wipe it with a damp cloth to clean it.
3. Viewing Window and LED Light Design: The large zipper viewing window is made of PVC materials. The translucent design and built-in LED light make it more convenient for you to observe the whole machine operating process clearly. Note: when observing the laser engraving progress, blue light resistant glasses are required to wear!
4. Effective Ventilation System: Equipped with an 80mm diameter and 3000r/min high-speed exhaust fan, it can produce strong suction, combining a smoke exhaust effect and noise insulation feature. The fan can effectively and quickly discharge the smoke through the exhaust pipe to maintain the air quality indoor.
5. Flame Retardant and Fireproof: This Sculpfun enclosure is made of flame retardant plexiglass fiber material with double-sided silicone coating, which can withstand the instantaneous high temperature to prevent burning.
6. Large Working Space with Wide Compatibility: It is compatible with Sculpfun S6, S6 pro, S9, S10, S30 Series, and not compatible with S30 Ultra Series. This laser enclosure is also suitable for the vast majority of laser engraving machines on the market. Note that in order to avoid incompatibility with your machine, you need to confirm the size of your laser engraver before purchasing this enclosure.
7. Quick and Easy Installation: The laser engraver enclosure comes with clear installation instructions that can be quickly assembled in minutes without tools. And it can be folded up when not in use to help you save storage space as well as lightweight and portable for easy carry.
Bracket Material: galvanized steel pipe
Fireproof Cloth Material: glass fiber with double-sided silicone coating
Fan Speed: 3000rpm
Interface Type: USB
Fireproof Testing: open flame of lighter (3 minutes)
Note: It is not recommended to do test on your own, with long time burning, there will be marks on the fireproof cloth
Product Size:
width of the top: 570mm
height of the front: 140mm
Length*Width*Height: 680x765x380mm
Notice: please allow the variations due to manual measurement!
Packing List:
15 x Tube
6 x Right Angle Connector
4 x Oblique Angle Connector
1 x Fireproof Cover
1 x Fan
1 x LED Light
1 x Power Cable
1 x Exhaust Pipe
1 x Flange
1 x Hose Clamp
1 x Cross Screwdriver
1 x Accessories Bag
4* Screw
4* Nut
10* Zip Tie
Instruction manual download
DownloadSimplicity of appearance
Eight features, cost-effective choice
Super Strong Smoke Exhaust
With bilateral air inlets to form an excellent airflow design, quickly exhaust the smoke.
3000r/min High-Speed Fan
The wind is strong, which can quickly eliminatethe smoke in the box, while the noise control is excellent.
Equipped with LED Light
With LED light inside, you can observe the whole process easily.
Tool Placement Available
You can stick your small tools on the B1 enclosure easily.
Flame Retardant and Fireproof
Made of flame retardant plexiglass fiber material,which can withstand the instantaneous high temperature to prevent burning.
Large Space with Wide Compatibility
Big Space : 765* 680* 376mm,suitable for most laser engraving machines on the market
