SCULPFUN S30: 5W Laser Engraving Machine with Automatic Air-assist

$399.99 $249.99
In Stock

➤ Laser Power: Up to 5W
➤ Engraving Area: 380mm*385mm
➤ Automatic Air Assist
➤ Sturdy and Durable Frame

Plug Type: US Plug

US Plug
EU Plug
UK Plug
AU Plug

Ship From: USA(U.S.customer only)

USA(U.S.customer only)
China
Europe
  • Fast Shipping
    Local US & EU Warehouse for most of products

  • 30 Days Return
    Simply return it within 30 days

  • 1 Year Free Warranty
    Provide free replacement within 1 year

  • 2% rebate on orders
    Get 2% of your order back

paypalvisamastermaestroamerican expressjcbklarna

Frequently Bought Together

Total price:$1,448.95 $1,108.95

Main Features:



1. Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.


2. Replaceable protective lens: S30 series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from SCULPFUN.

3. Expandable engraving area on both XY axes: The S30 series adopts an innovative XY axis expandable design, the original engraving area is about  380x385 mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm engraving area, which can help you better handle large area engraving or cutting work.

4. Industrial-grade cutting accuracy: S30 series adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.

5. Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.

6. Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.

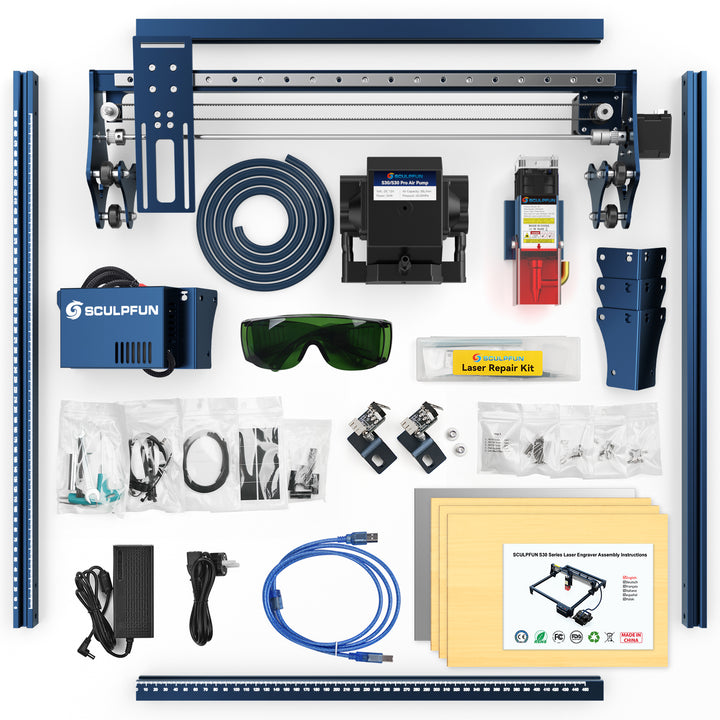

Packing list:

1×S30 laser; 1× Laser Repair Kit; 1×12V automatic air pump; 3 x A4 size 3mm wooden board; 2×Limit Switch; 1×12V 5A power adapter; 1 x power cord; 1×USB cable; 1× Air tube;

1× Installation tool Kit; 1× Laser Goggles; 1 x A4 metal backing plate; Step 1-6 Install the package; 1× Manual; 1 x X-axis assembly; 2 x X profiles; 2 × Y profiles; 1×Control Box Assembly; 3 x support feet

S30 Series User Manual

Download

Laser Information

Diode laser output power: 5W (note that this is light energy not electrical energy)
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.

Machine Information

Engraving accuracy: 0.005mm
Machine power: about 60W
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm

Sturdy and durable frame

Made of high-strength aluminum alloy, it can withstand up to 50KG weight without damage, very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.

Built-in high pressure air assist nozzle

Greatly improve the cutting efficiency, the cutting speed is more than 5 times faster than airless. The powerful airflow blows the residue away, making the cut surface very clean.

Right-angle measuring ruler

There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object. The 380mm*385mm large-area engraving range can meet your various engraving needs.

Upgraded 32-bit air-assist motherboard

The latest 32-bit motherboard supports automatic air-assist control. Reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)

Automatic Controlled Aia Assist

S30 5W is equipped with an air assist 32-bit motherboard and a control-type air pump, which can intelligently control the air assist ON or OFF (Lightburn M8 Air Assist Switch)

Replaceable Lens Super Long Service Life Laser

The S30 5W laser module adopts the leading replaceable lens design. After long-term useor damaged, the lens can be replaced to recover the power. This greatly improves the ser-vice life of the laser, which is more than 10 times higher than ordinary lasers.

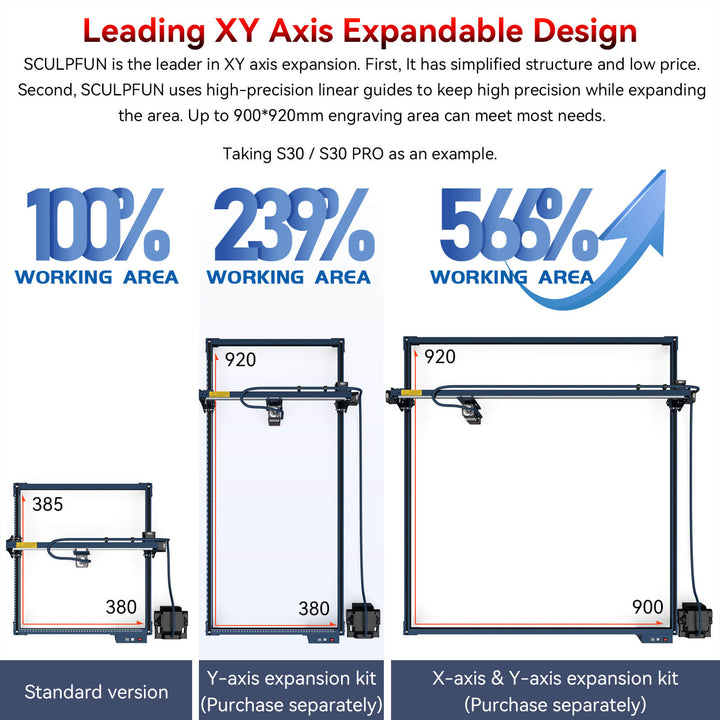

Leading XY Axis Expandable Design

SCULPFUN is the leader in XY axis expansion. First, it has simplified structure and low price.Second, SCULPFUN uses high-precision linear guides to keep high precision while expanding the area.Up to 905x935 mm engraving area can meet most needs.

High Precision 0.005mm Industrial Grade Linear Rail

S30 5W adopts the most accurate 0.005mm industrial linear guide,which greatly improves the engraving accuracy, and there is no wave line when engraving.

Specification

Product Model SCULPFUN S30
Diode laser output power 5W (note that this is light energy not electrical energy)
Laser focus 0.06x0.06mm
Laser wavelength 455±5nm
Focusing method fixed focus column + sliding device
Laser protection cover Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Engraving accuracy 0.005mm
Engraving area size the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm
Machine power about 60W
Air pump type mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter 7.5mm
Motherboard 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
Engraving material all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method USB connection or Bluetooth wireless connection
Power Input 12V 5A
Packing weight 6.7kg
Packing size 62.3*24*22.5cm
Certification CE FCC RoHS FDA ICE certification
