Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an air-assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
Replaceable protective lens: The S30 series laser adopts an innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lenses can be easily purchased from SCULPFUN.
Expandable engraving area on both XY axes: The S30 series adopts an innovative XY axis expandable design, the original engraving area is about 370x363 mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm engraving area, which can help you better handle large area engraving or cutting work.
Industrial-grade cutting accuracy: The S30 series adopts an extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.
Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.
Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.
Laser Information:
Diode laser output power: 20W (note that this is light energy not electrical energy)
Laser focus: 0.08x0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Machine Information:
Engraving accuracy: 0.005mm
Engraving area size: the standard version is 370mm*363mm, which can be expanded to 935x400mm or 935x905mm
Machine power: about 120W
Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
Engraving/cutting materials:
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Ben

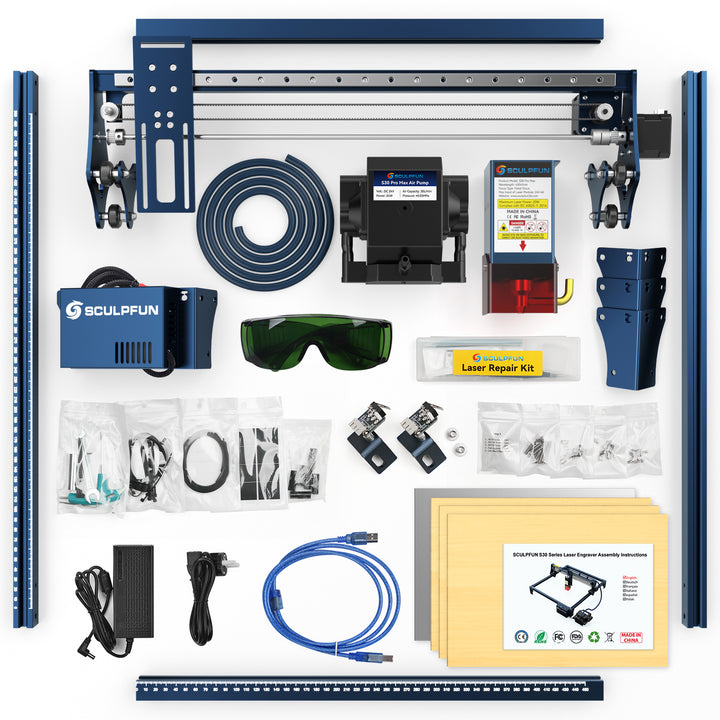

1×S30 Pro Max laser
1× Laser Repair Kit
1×12V automatic air pump
3 x A4 size 3mm wooden board
2×Limit Switch
1×12V 7A power adapter
1 x power cord
1×USB cable
1× Air tube
1× Installation Tool Kit
1× Laser Goggles
1 x A4 metal backing plate
Step 1-6 Install the package
1× Manual
1 x X-axis assembly
2 x X profiles
2 × Y profiles
1×Control Box Assembly
3 x support feet
●Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
Todays fun. Plans are free online but no instructions. Like putting IKEA furniture together with just a picture. Great fun
The engraver was packaged very securely with each of the pieces cushioned with packing foam. When it came to assembling, it was pretty easy as there were clear instructions. Installing the software and learning the program was also pretty straight forward.I have only engraved wood with the laser, but I'm really excited to use it to it's full capability.
Amazing results with a powerful 22watts laser.
Made of high-strength aluminum alloy, it can withstand up to 50KG weight without damage, very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.
There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object. The 370mm*363mm large-area engraving range can meet your various engraving needs.
Greatly improve the cutting efficiency, the cutting speed is more than 5 times faster than airless. The powerful airflow blows the residue away, making the cut surface very clean.
The latest 32-bit motherboard supports automatic air-assist control. Reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
It doesn't move from side to side or shake and twitch. It works just fine. very friendly to projects
Engraving accuracy: 0.005mm
Engraving area size: the standard version is 370mm*363mm, which can be expanded to 935x400mm or 935x905mm
Machine power: about 120W
Compatible with Windows from XP to W10 / Linux / Mac OS. Supports JPG / PNG / BMP / DXF / NC, etc.
Compatible with Windows from XP to W10 / Linux. Supports JPG / PNG / BMP / DXF / NC, etc.
